Stage Importing

Rooms and types

TODO

Vertex Coloring

TODO

  • Do not skip rooms!!!

Blender

Previewing the model

From the game's source code: ingame camera fov: 38

Viewing and editing vertex colors

Vertex Paint mode

Image title
Use vertex paint mode to view and edit vertex colors.

Viewing the whole scene's vertex colors

Image title
Use this view mode to render only vertex colors.

Baking lights to vertex colors

  • Add lights to your scene
  • Set a view to render only lights for preview

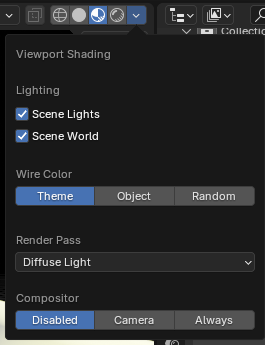

View scene lights

Image title
Use this view mode to render only diffuse colors (lights and shadows).

  • Select one of your Room objects
  • Go into Vertex Coloring mode
  • Bake lights to vertex colors

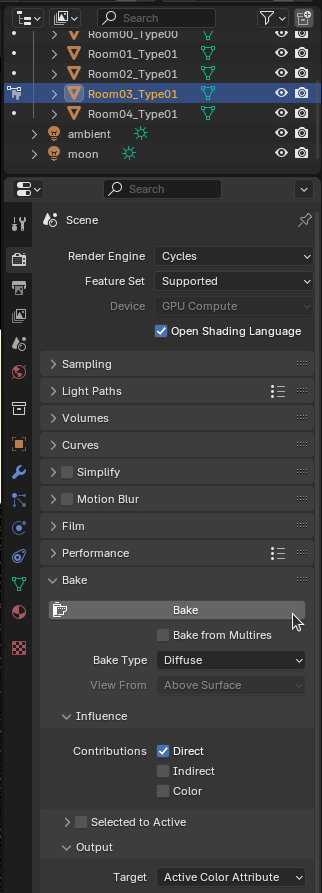

Bake lights

Image title
Note we're baking direct Diffuse lights into Active Color Attribute (Vertex Colors).

Transparent Textures

Adding transparency

  • Enable the texture flag for transparency
  • Use pure black wherever you want transparency in your texture

Changing alpha color

  • In Pixelformer, change the Target color format to RGB color with alpha channel (32 bpp) mode
    • If not using Pixelformer, you will need to follow these steps instead, even if using a single alpha color, as most other programs do not export .bmp alpha at all, or just not in a way that GE reads properly.
  • Choose the color you want to use for transparency, set it's alpha to 0 and fill in all transparent areas with it
  • Export texture as A8:R8:G8:B8 (32 bpp) with no other options ticked

Multiple alpha colors

  • Same steps as above, but with multiple alpha 0 colors instead of a single color
  • Re-import stage in GE, note which colors are still non-transparent in-game
  • Export stage file from Game Configuration and open the .bin in a hex editor
  • Manually find where the palette address for your updated texture is
  • Find hex value of each non-transparent color (each color is 2 bytes long) and subtract 1 from them

Model proportions

Blender

Proportion when exporting using default FBX settings: 1 m in Blender = 100 units in Smash 64. This means a vertex at (90, 0, 83) will be located at (9000, 0, 8300) in the game.

Frequent Issues

  • Stage elements are flickering: The geometry is probably too far away from the camera.
  • Whole rooms move when the camera moves: The geometry extends too far away from 0,0,0.
  • Textures wrap when the camera moves: You have planes that are too big. Try subdividing huge geometry into smaller pieces.
  • Vertex colors are not working:
    • Your file should not be skipping Rooms. Check if you're skipping Room numbers and try again (Should go from 0, 1, 2, and so on)
    • Try a few more times. Sometimes it's random and should work in ~5 tries
    • If all else fails, you'll have to unfortunately try importing to a fresh ROM
